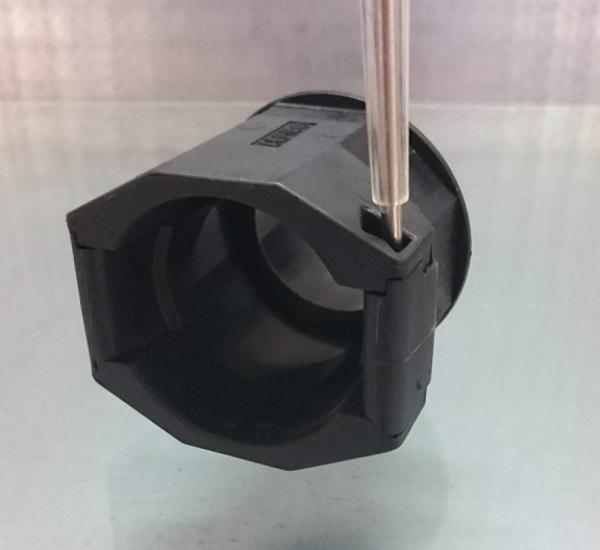

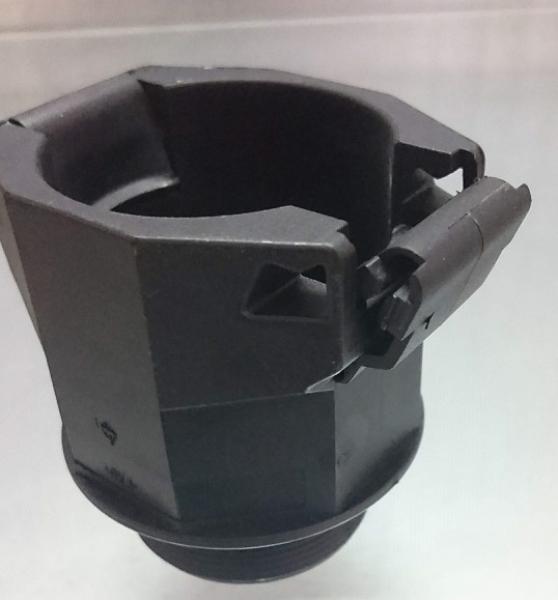

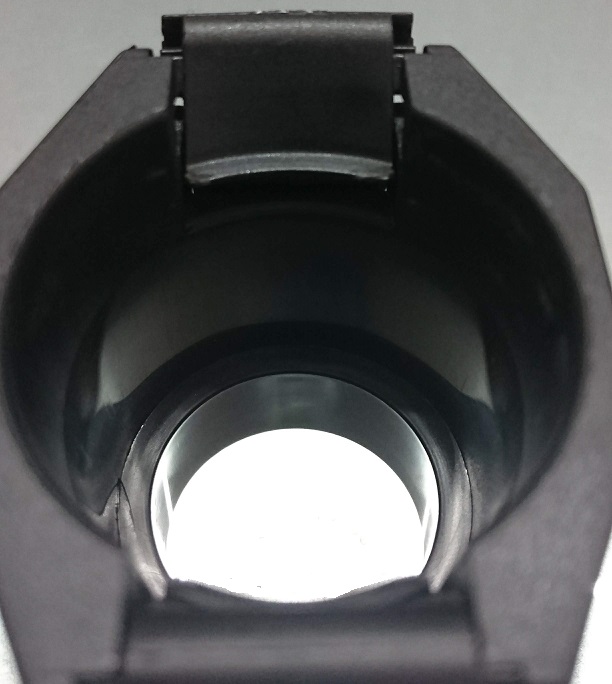

Easy-to-install and inexpensive corrugated conduit fittings with a conical corrugated conduit connection on the inside. The corrugated conduit is simply inserted into the fitting and snaps securely into place at the end. To release the corrugated conduit again, the retaining lugs in the fitting are simply loosened with a screwdriver and can then simply be pushed back into their original position. The screw connection is then ready for a new application.
Protection class:
IP65 (IP68**)
Material:
Polyamid 6
Temperature range:
-40°C to 120°C
Flame protection:
• according to FMVSS 302: < 100 mm/min
Colour(s)/versions:
• Black, grey • External thread: Metric/PG
Properties:
• Conical sealing on corrugated pipe • Thread sealing via sealing webs • Special latching technology • Quick and easy installation: Tube is inserted into the "closed" Fitting • Corrugated pipe can be rotated in the fitting • High pull-out forces • Halogen-free
Accessories:
• O-ring seal
Areas of application:
• Suitable for profiles: Standard, UFW • Machine and apparatus construction • Ship and railway construction • vehicle construction • Switch cabinets
IP 68**
To achieve protection class IP 68, fit the O-ring in the first shaft valley after the section of the corrugated conduit on the screw connection side. For NW 50 standard profile O-ring seals in the first and second corrugated of the tube.
External thread
for
NW
M12x1,5
NW
7,5
M12x1,5
NW
8,5
M12x1,5
NW
10
M16x1,5
NW
10
M16x1,5
NW
12+13
M20x1,5
NW
12+13
M20x1,5
NW
17
M25x1,5
NW
17
M25x1,5
NW
22
M25x1,5
NW
23
M32x1,5
NW
29
M40x1,5
NW
37
M50x1,5
NW
50
M63x1,5
NW
50
