IP66 switch cabinet 500x300x200 mm HBT VDE UL certified sheet steel 1-door
IDE GN503020 IP66 Control Cabinet 500x300x200 mm HBT VDE UL Certified Sheet Steel Metal Enclosure, 1-Door with Galvanized Mounting Plate and Grounding Strap
VDE UL certified IP66 sheet steel wall-mounted enclosure 1-door light grey RAL 7035 with galvanized mounting plate,

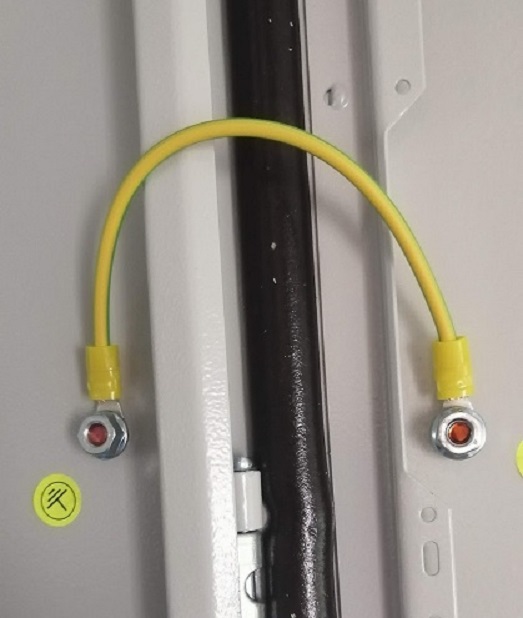

earthing strap and removable flange plate for cable entry.
The wall-mounted enclosures are made of high-quality, cold-rolled sheet steel up to 2 mm thick and have a hardened surface with powder coating (epoxy PE) in RAL 7035.
Technical data
IP66 certifications
In accordance with Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (in the relevant parts). UL508A and Gost-R certification. Bureau Veritas according to the UNE-EN62208 standard. Certification for ships.
Foamed-in polyurethane seal.
Hardened polyester lacquer coating RAL 7035, matt, with UV protection.
The enclosures are individually packaged and supplied with mounting plate and accessories.
Locking 5mm-DIN-DDB (up to height 400mm 1 lock, up to height 800mm 2 locks,
from 1000mm height 3-point rod locking)

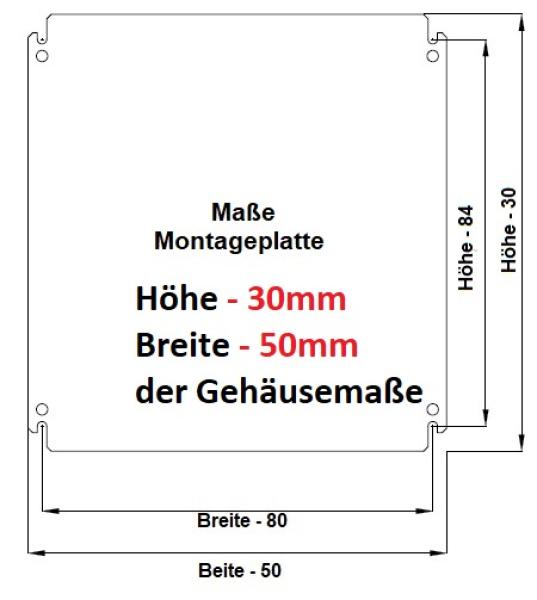

Mounting plates: for enclosures up to 700 mm high are supplied unmounted, from 800 mm mounted in the enclosure.
Accessories: 4 sealing plugs, earthing labels, key, cable flange plate with screws, mounting instructions.
VDE UL certified IP66 sheet steel wall-mounted enclosure 1-door light grey RAL 7035 with galvanized mounting plate,
earthing strap and removable flange plate for cable entry.
The wall-mounted enclosures are made of high-quality, cold-rolled sheet steel up to 2 mm thick and have a hardened surface with powder coating (epoxy PE) in RAL 7035.
Technical data
| Protection class | |
| Single-door enclosures | IP66 / NEMA 1, 12, 4 |
| Double-door enclosures | IP55 / NEMA 1, 12 |
| Stackable enclosures | IP54 |
| Impact resistance | Standard door: Up to IK10 |
| Viewing door: Up to IK09 | |
| Ambient temperature range | -25 ºC / +60 ºC |
| Maximum rated operating voltage | 1000 V AC / 1500 V DC |
IP66 certifications
In accordance with Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (in the relevant parts). UL508A and Gost-R certification. Bureau Veritas according to the UNE-EN62208 standard. Certification for ships.
Features:
Cold-rolled sheet steel in accordance with EN 10130+A1.Foamed-in polyurethane seal.
Hardened polyester lacquer coating RAL 7035, matt, with UV protection.
The enclosures are individually packaged and supplied with mounting plate and accessories.
Locking 5mm-DIN-DDB (up to height 400mm 1 lock, up to height 800mm 2 locks,
from 1000mm height 3-point rod locking)
Mounting plates: for enclosures up to 700 mm high are supplied unmounted, from 800 mm mounted in the enclosure.
Accessories: 4 sealing plugs, earthing labels, key, cable flange plate with screws, mounting instructions.
