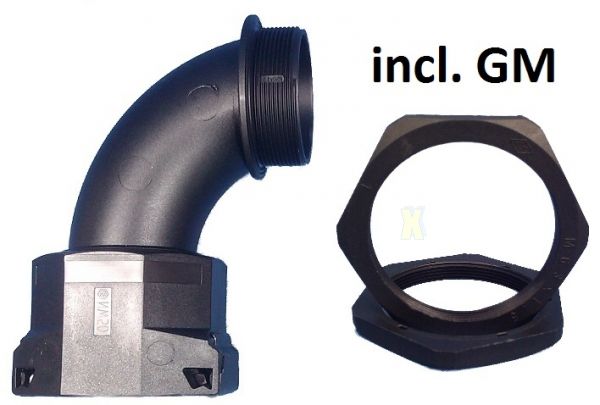

Corrugated pipe fitting M20 to NW13 metric elbow 90°
Corrugated pipe fitting M20 to NW13 metric elbow 90°
| Protection class: | IP65 (IP68**) |
| Material: | Polyamid 6 |
| Temperature range: | -40°C to 120°C |
| Flame protection: | • according to FMVSS 302: < 100 mm/min |
| Color(s)/versions: | • Black, gray
• External thread: Metric/PG |
| Properties: | • Conical sealing on corrugated pipe
• Thread sealing via sealing webs

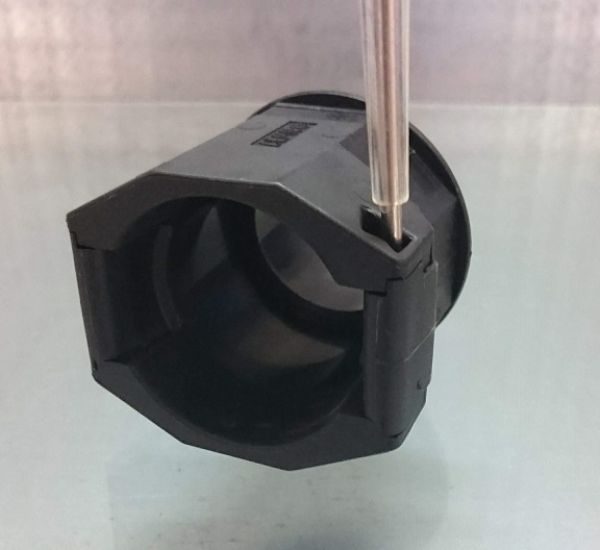

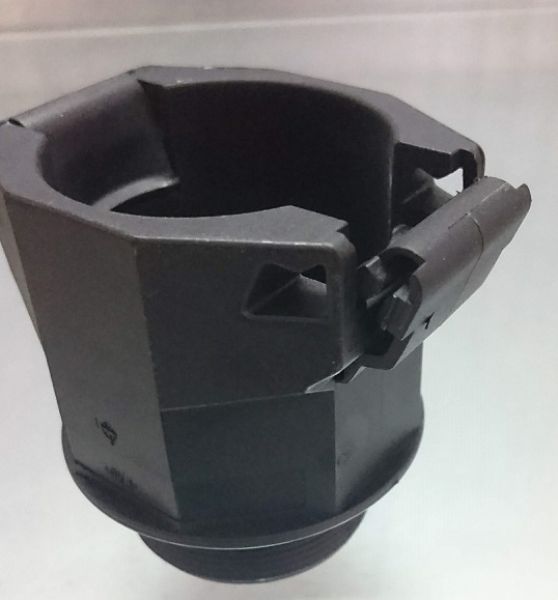

• Special latching technology

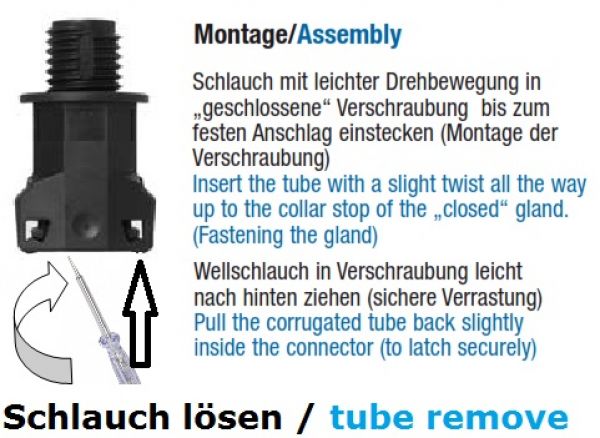

• Quick and easy installation:
tube is inserted into the "closed"
fitting
• Corrugated conduit can be rotated in the fitting
• High pull-out forces
• Halogen-free |
| Accessories: | • O-ring seal |
Areas of application:
| • Suitable for profiles: Normal, UFW
• Machine and apparatus construction
• Ship and railroad construction
• vehicle construction
• Switch cabinets |
| IP 68** | To achieve protection class IP 68, fit the O-ring
the O-ring in the first shaft valley after the
section of the corrugated conduit on the screw connection side.
For NW 50 standard profile O-ring
seals in the first and second corrugated
of the conduit. |
| External thread | for NW |
| M16x1,5 | NW | 10 |
| M16x1,5 | NW | 12 + 13 |
| M20x1,5 | NW | 12 + 13 |
| M20x1,5 | NW | 17 |
| M25x1,5 | NW | 17 |
| M25x1,5 | NW | 23 |
| M32x1,5 | NW | 23 |
| M32x1,5 | NW | 29 |
| M40x1,5 | NW | 29 |
| M40x1,5 | NW | 37 |
| M50x1,5 | NW | 37 |
| M50x1,5 | NW | 50 |
| M63x1,5 | NW | 50 |
