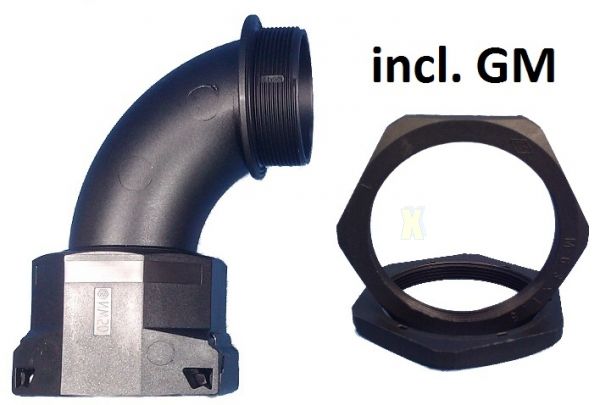

Corrugated pipe fitting M16 to NW13 metric elbow 90°

3,09 EUR
3,09 EUR per PU

incl. 19% tax excl. Shipping costs

Description

Protection class:	IP65 (IP68**)
Material:	Polyamid 6
Temperature range:	-40°C to 120°C
Flame protection:	• according to FMVSS 302: < 100 mm/min
Color(s)/versions:	• Black, gray • External thread: Metric/PG

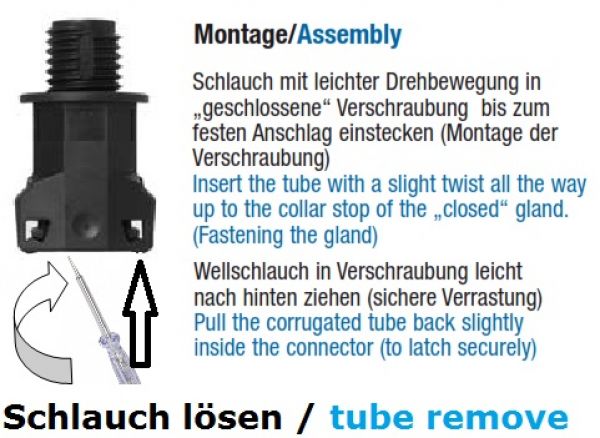

Properties:	• Conical sealing on corrugated pipe • Thread sealing via sealing webs • Special latching technology • Quick and easy installation: tube is inserted into the "closed" fitting • Corrugated conduit can be rotated in the fitting • High pull-out forces • Halogen-free
Accessories:	• O-ring seal
Areas of application:	• Suitable for profiles: Normal, UFW • Machine and apparatus construction • Ship and railroad construction • vehicle construction • Switch cabinets
IP 68**	To achieve protection class IP 68, fit the O-ring the O-ring in the first shaft valley after the section of the corrugated conduit on the screw connection side. For NW 50 standard profile O-ring seals in the first and second corrugated of the conduit.
