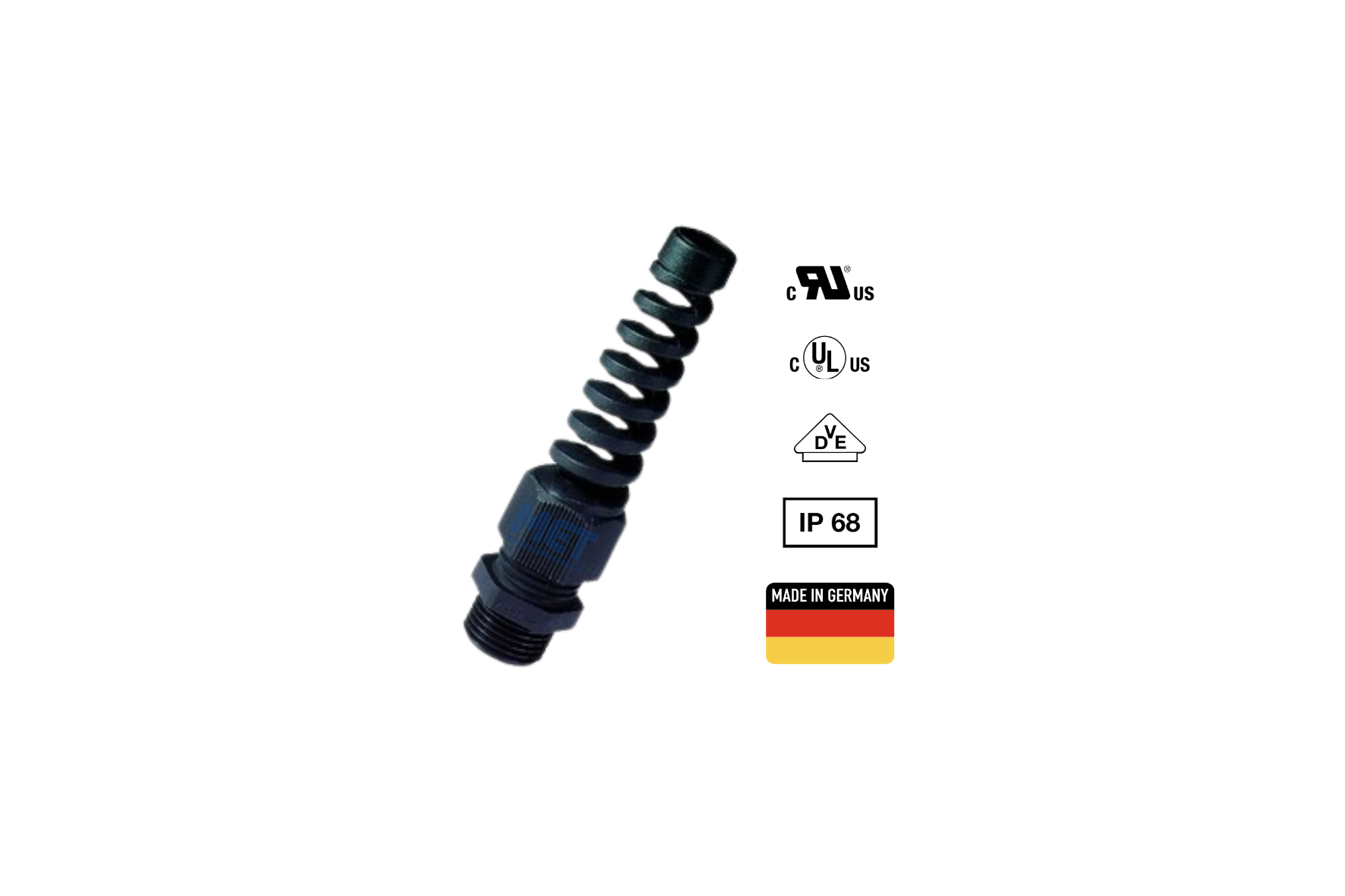

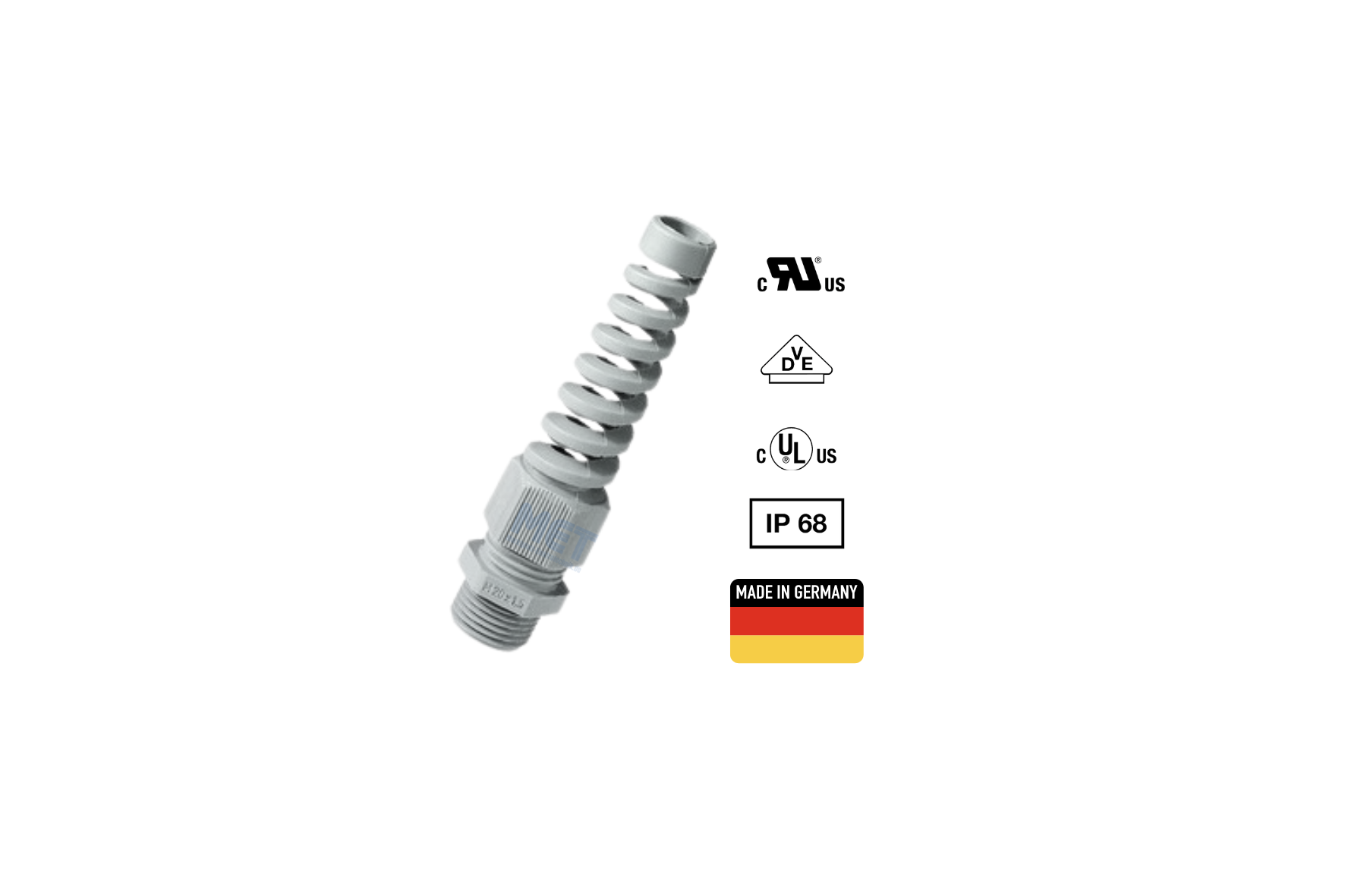

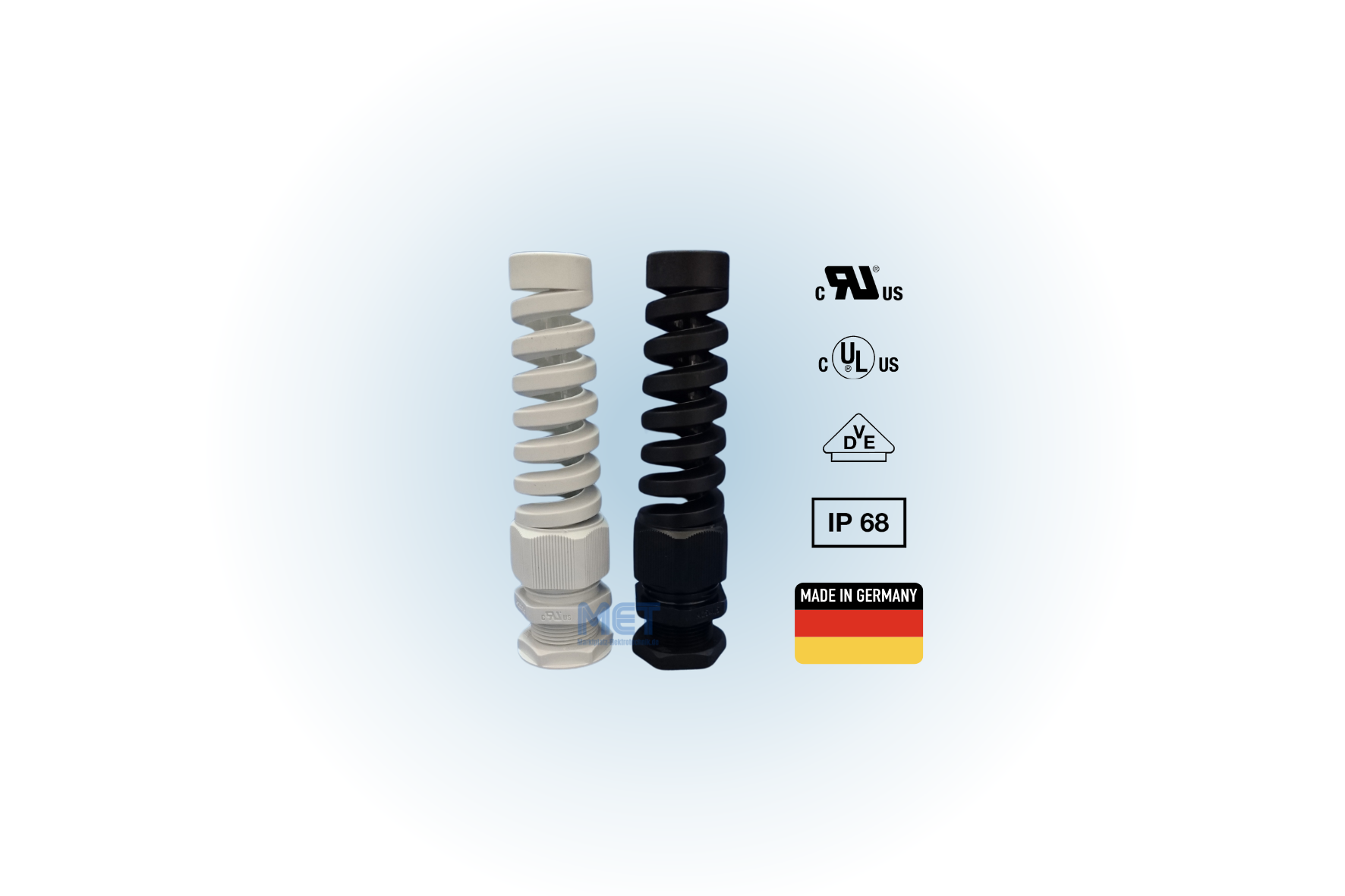

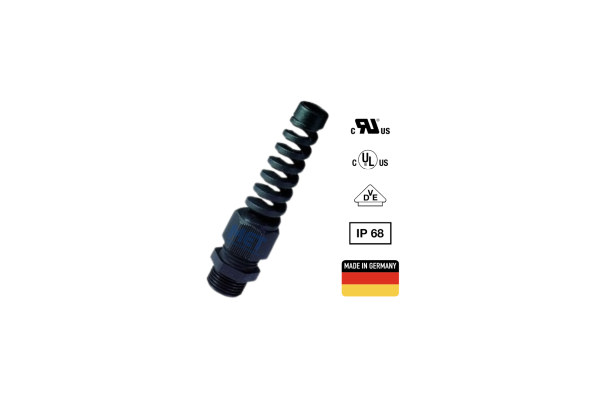

PA6 bend protection cable gland M12 x1.5 KB 3-6.5mm
high-quality polyamide cable gland made of PA6 with anti-kink/bending protection spiral
for movable, flexible cables with integrated strain relief
Large sealing and clamping range, easy to install
Temperature range -20°C / +100°C
Protection class IP68 - 5 bar
Test standard EN 50262 / UL 514B
for movable, flexible cables with integrated strain relief
Large sealing and clamping range, easy to install
Temperature range -20°C / +100°C
Protection class IP68 - 5 bar
Test standard EN 50262 / UL 514B

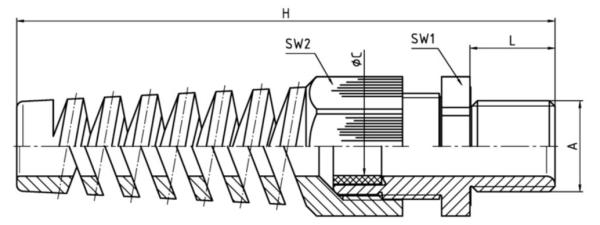

| Connection thread Standard length | ||||||
| A | Clamping range Ø from-to | L | SW1 | SW2 | H | Standard VE |
| mm | mm | mm | mm | mm | Stück | |
| M12x1,5 | 3 - 6,5 | 8 | 15 | 15 | 63,5 | 100 |
| M16x1,5 | 5 -10 | 15 | 22 | 22 | 94,5 | 100 |
| M20x1,5 | 6 -12 | 11 | 24 | 24 | 102 | 50 |
| M20x1,5 | 10-14 | 15 | 27 | 27 | 116 | 50 |
| M25x1,5 | 13 - 18 | 15 | 33 | 33 | 133 | 25 |
