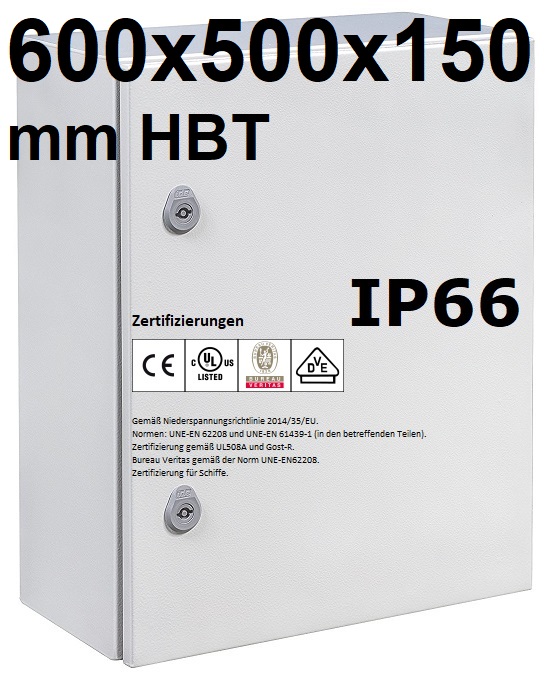

IP66 Enclosure 600x500x150 mm HBT VDE UL certified
IDE GN605015 IP66 Enclosure 600x500x150 mm HBT VDE UL certified sheet steel metal enclosure 1-door with galvanized mounting plate and earthing strap
IP66 sheet steel enclosure Metal wall-mounted enclosure 1-door with galvanized mounting plate and earthing strap
Quality enclosure from the EU in VDE & UL certified industrial quality with mounted standard door, galvanized mounting plate and earthing strap green/yellow M6/M6, as well as foamed PU seals (instead of loose foam on the door). UL-certified industrial quality with fitted standard door,
galvanized mounting plate and green/yellow M6/M6 earthing strap, as well as foamed PU seals (instead of loose foam) on the door and flange to ensure that the degree of protection is maintained.
Packed in environmentally friendly & reusable cardboard packaging without unnecessary, costly and outdated film packaging
Ready-to-use door with mounted 5mm DIN double-bit lock, easily removable mounting plate and flange plate(s) with foamed PU seal for secure mounting
Protection class IP66 / NEMA 1, 12, 4
Impact resistanceUp to IK10
Ambient temperature range-25 ºC / +60 ºC
Maximum rated operating voltage 1000 V AC / 1500 V DC
In accordance with Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (in the relevant parts). Certification according to UL508A and Gost-R. Bureau Veritas according to the UNE-EN62208 standard. Certification for ships.
IP66 sheet steel enclosure Metal wall-mounted enclosure 1-door with galvanized mounting plate and earthing strap
Quality enclosure from the EU in VDE & UL certified industrial quality with mounted standard door, galvanized mounting plate and earthing strap green/yellow M6/M6, as well as foamed PU seals (instead of loose foam on the door). UL-certified industrial quality with fitted standard door,
galvanized mounting plate and green/yellow M6/M6 earthing strap, as well as foamed PU seals (instead of loose foam) on the door and flange to ensure that the degree of protection is maintained.
Packed in environmentally friendly & reusable cardboard packaging without unnecessary, costly and outdated film packaging
Ready-to-use door with mounted 5mm DIN double-bit lock, easily removable mounting plate and flange plate(s) with foamed PU seal for secure mounting
Protection class IP66 / NEMA 1, 12, 4
Impact resistanceUp to IK10
Ambient temperature range-25 ºC / +60 ºC
Maximum rated operating voltage 1000 V AC / 1500 V DC
In accordance with Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (in the relevant parts). Certification according to UL508A and Gost-R. Bureau Veritas according to the UNE-EN62208 standard. Certification for ships.
