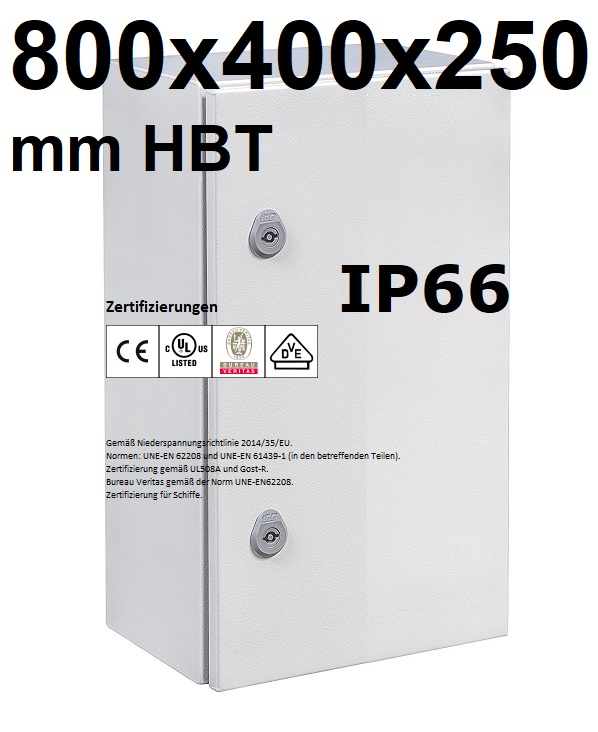

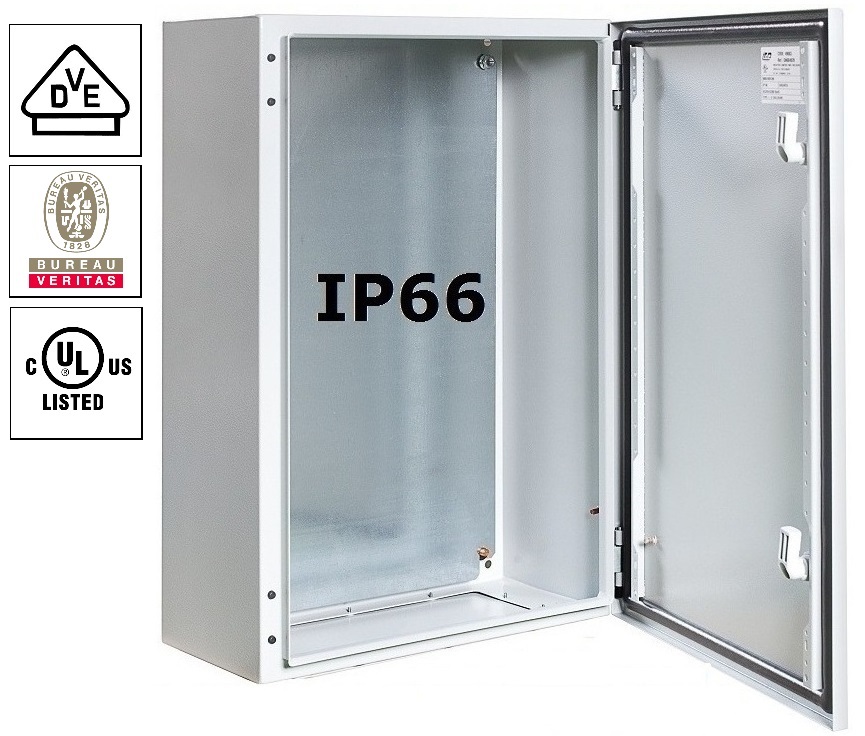

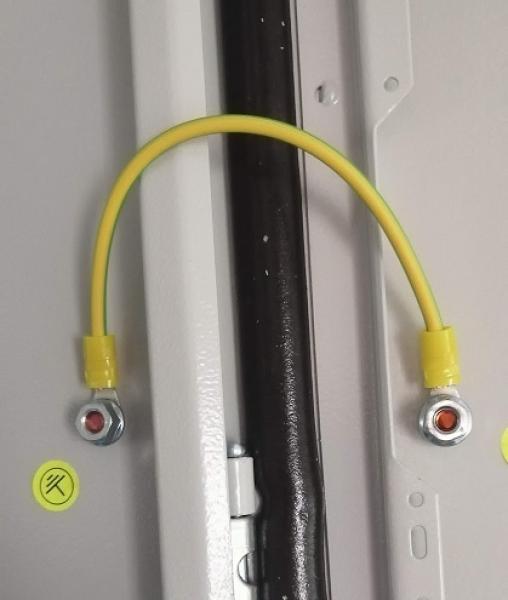

IDE GN804025 IP66 Control Cabinet 800x400x250 mm HBT VDE UL Certified Sheet Steel Metal Enclosure, 1-Door with Galvanized Mounting Plate and Grounding Strap
Wall-mounted control cabinet enclosure made of high-quality, cold-rolled sheet steel up to 2 mm thick with a hardened polyester paint finish in matte light gray RAL7035 with UV protection and a PU seal on the inside of the door.
The enclosures are individually packaged and supplied with a mounting plate and accessories.
5 mm DIN-DDB locking mechanism (1 lock up to 400 mm high, 2 locks up to 800 mm high,
3-point rod locking mechanism from 1000 mm high)
Mounting plates: for enclosures up to 700 mm high, delivered unassembled; for enclosures 800 mm and higher, mounted in the enclosure.

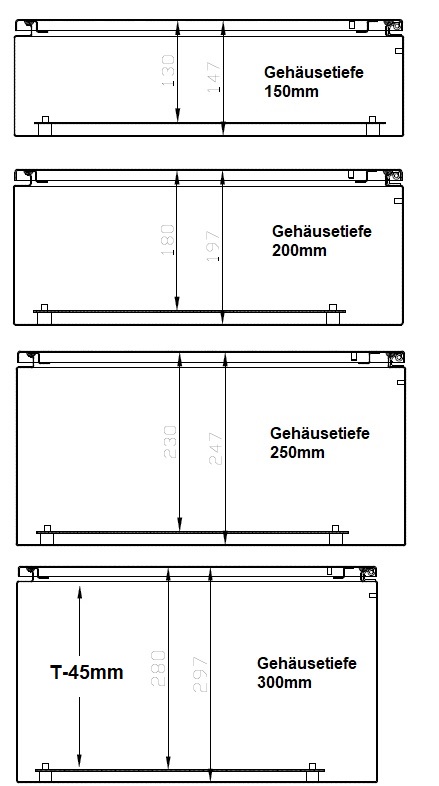

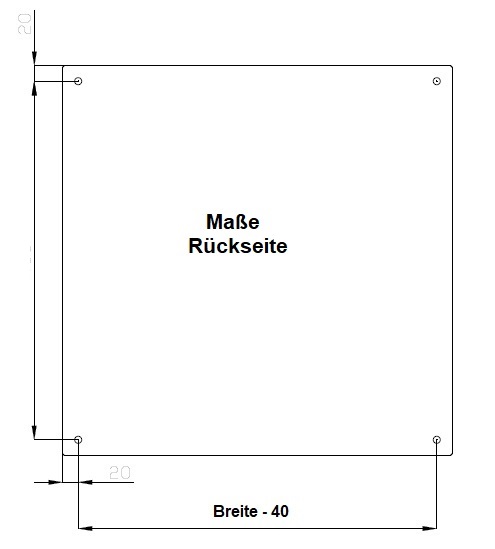

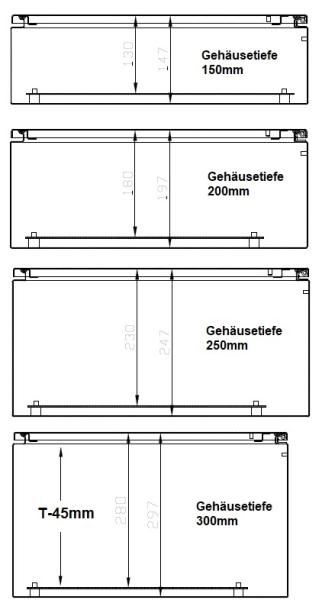

Dimensions: Height - 50mm / Width - 30mm (- = minus external dimensions)

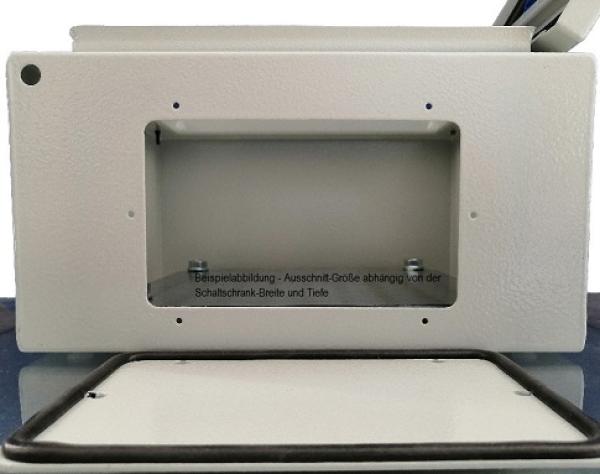

Accessories: 4 sealing plugs, grounding labels, key, cable gland plate with screws, assembly instructions.
