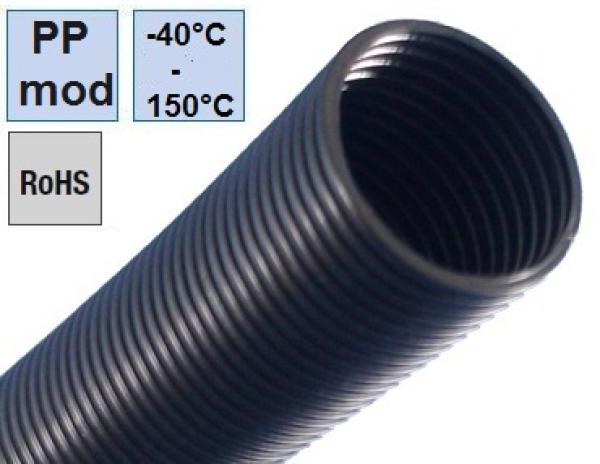

Automotive corrugated pipe NW 7,5 = ID Ø 6,9mm - AD Ø 9,9mm PPmod slotted/closed for cars, commercial vehicles, boats.
Cable protection conduit made of modified polypropylene (PPmod) for use as cable protection for loosely laid individual cables & lines.
(Longitudinal slot remains largely closed even after installation!)
This high-quality corrugated conduit is suitable for protecting retrofitted cables in the vehicle interior and bodywork, e.g. when installing audio, video and hi-fi equipment.
This protective conduit is characterized by
+ the possibility of retrofitting additional cables
+ temperature resistance up to 150°C/500h
+ as an alternative to winding tape for cable harnesses
+ good flexibility

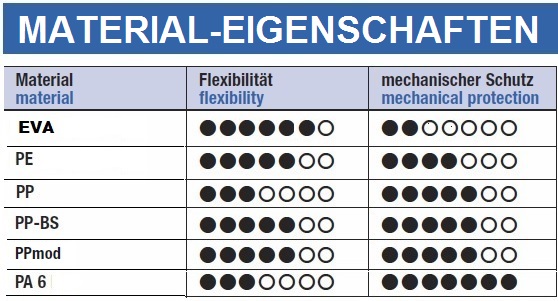

Material properties:
Material: modified polypropylene
Temperature range: 3000 h: -40°C to 135°C / 500 h: -40°C to 150°C
Flame protection: UL 94: V2 / according to FMVSS 302: self-extinguishing
Product properties: High toughness / resistant to flexural fatigue / very high low-temperature impact strength / UV-resistant
Color(s)/finishes: Black - slotted and closed
Areas of application: Vehicle interior, bodywork and engine
The filling level should be max. approx. 80% of the ID!
Slight deviation possible due to manufacturer.
